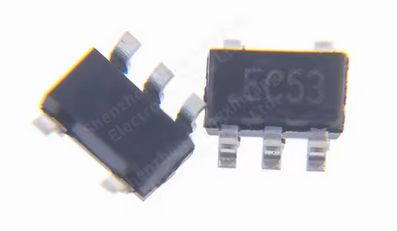

TVS Diode ESDA5V3SC5, SOT-23-5 package, SMD

TVS Diode ESDA5V3SC5, SOT-23-5 package, SMD

Ensure reliable protection for your electronic devices with the TVS diode ESDA5V3SC5 in a SOT-23-5 package. This high-quality SMD (Surface-Mounted Device) component is designed to effectively safeguard electronic circuits against surges and voltage spikes, ensuring their longer lifespan and reliability.

Key Features:

• Advanced protection technology: Protects sensitive components from damage caused by sudden surges.
• Compact SOT-23-5 package: Ideal for use in miniature SMD devices where space is critical.
• Lightweight design: Weighs only 0.01 kg, making it almost imperceptible in your project.

Why choose this diode?

The TVS diode ESDA5V3SC5 is an indispensable component for anyone designing or repairing electronic devices. It is suitable for a wide range of applications, from consumer electronics to advanced industrial systems. Its reliability and performance make it the perfect choice for professionals and electronics enthusiasts.

• Type: Quad Transil™ array (4-channel protection array)
• Working voltage (VRWM): 5.3 V
• Breakdown voltage (VBR): Typically ≈ 6.4–8 V (depending on conditions)
• Maximum peak current (IPP): 22 A (8/20 µs)
• Peak pulse power: 300 W (8/20 µs)
• Directionality: Unidirectional
• Parasitic capacitance: Very low (~280 pF typical)
• ESD protection level: Up to ±25 kV (contact and air) per IEC 61000-4-2
• Package: SOT-23-5L (5 pins)
• Marking code (on the package): EC53
