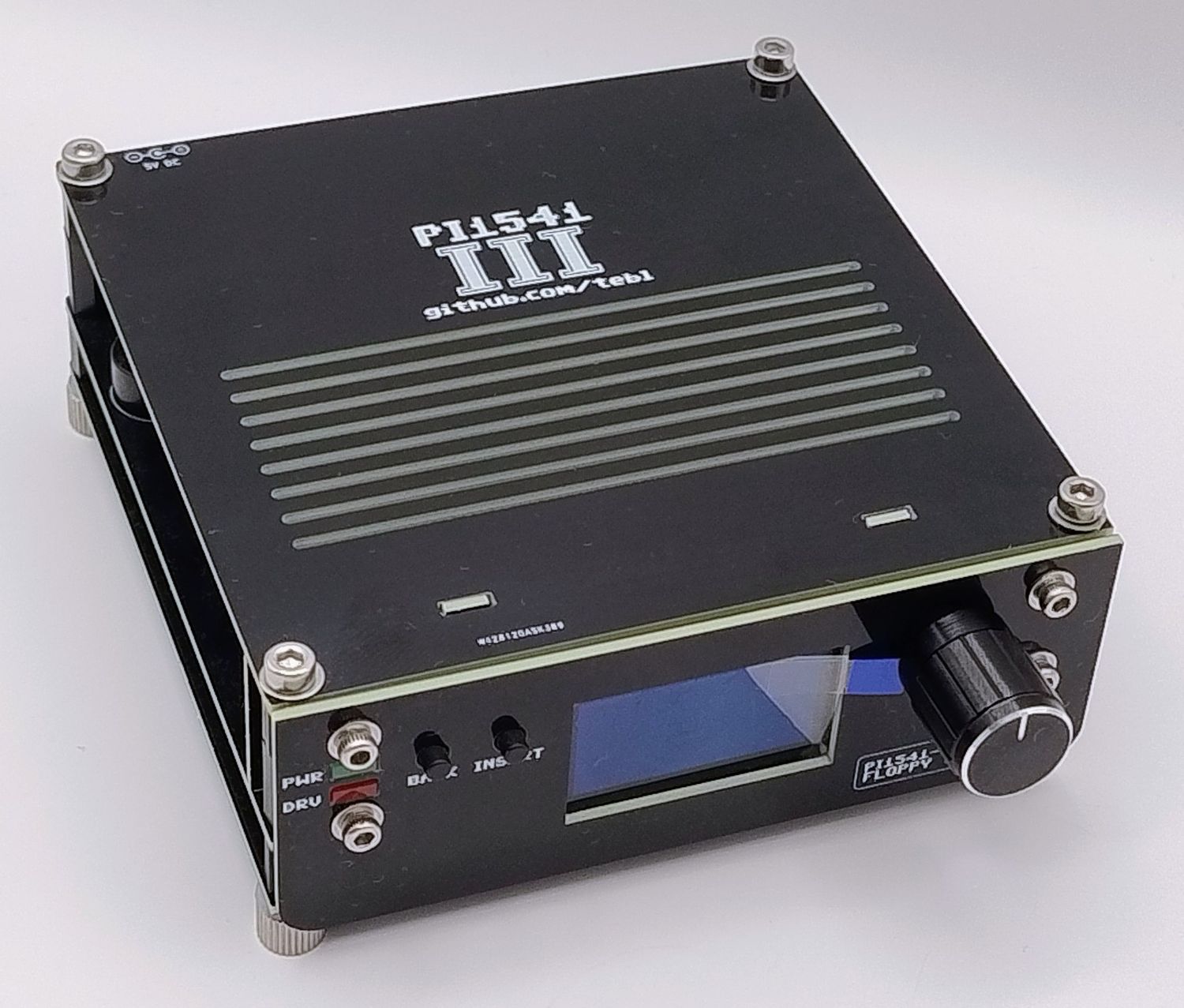

Emulator Pi1541-III Disk Drive 1541 for Commodore, Black, RPi3A+

The device is an emulator of the 1541 disk drive on Raspberry Pi 3A+.

Functionality

Pi1541 allows you to play disk images on Commodore computers using a 32Gb microSD card. Compatible computer models:

• Commodore 64
• Commodore 128
• Commodore VIC-20
• Commodore 16
• Commodore Plus4

Design

The set includes:

• Power cable with USB plug for 5V power supply.
• 5V power supply.
• 32Gb microSD card.
• Serial IEC cable for the disk drive.
• Knob in gold, black, silver, red, and blue colors, to choose from.

Technical highlights, no fluff:

• Compatibility at its best:
  Nearly 100% compatibility with the original, including support for many fast loaders, even those with copied originals and demo scene gems. The 6502 code runs in full cycle-exact mode, just like in 1982. Forget about heuristic SD2IEC guessing!
• Sci-fi working modes:
  The device starts in minimal SD2IEC (for browsing PRG and D64 files). After loading a disk image, it switches to full 1541/1581 emulation, allowing reading and writing data with support for multiple channels and sequential files.
• Classy hardware:
  Mounted on Raspberry Pi 3A+ (version without RJ45 and 3 USB ports compared to Raspberry Pi 3B/3B+). The PCB is equipped with a logic level converter (5V CBM → 3.3V Pi), IEC connectors, and a chain option, enabling cascading connection with other drives – both real and emulated.

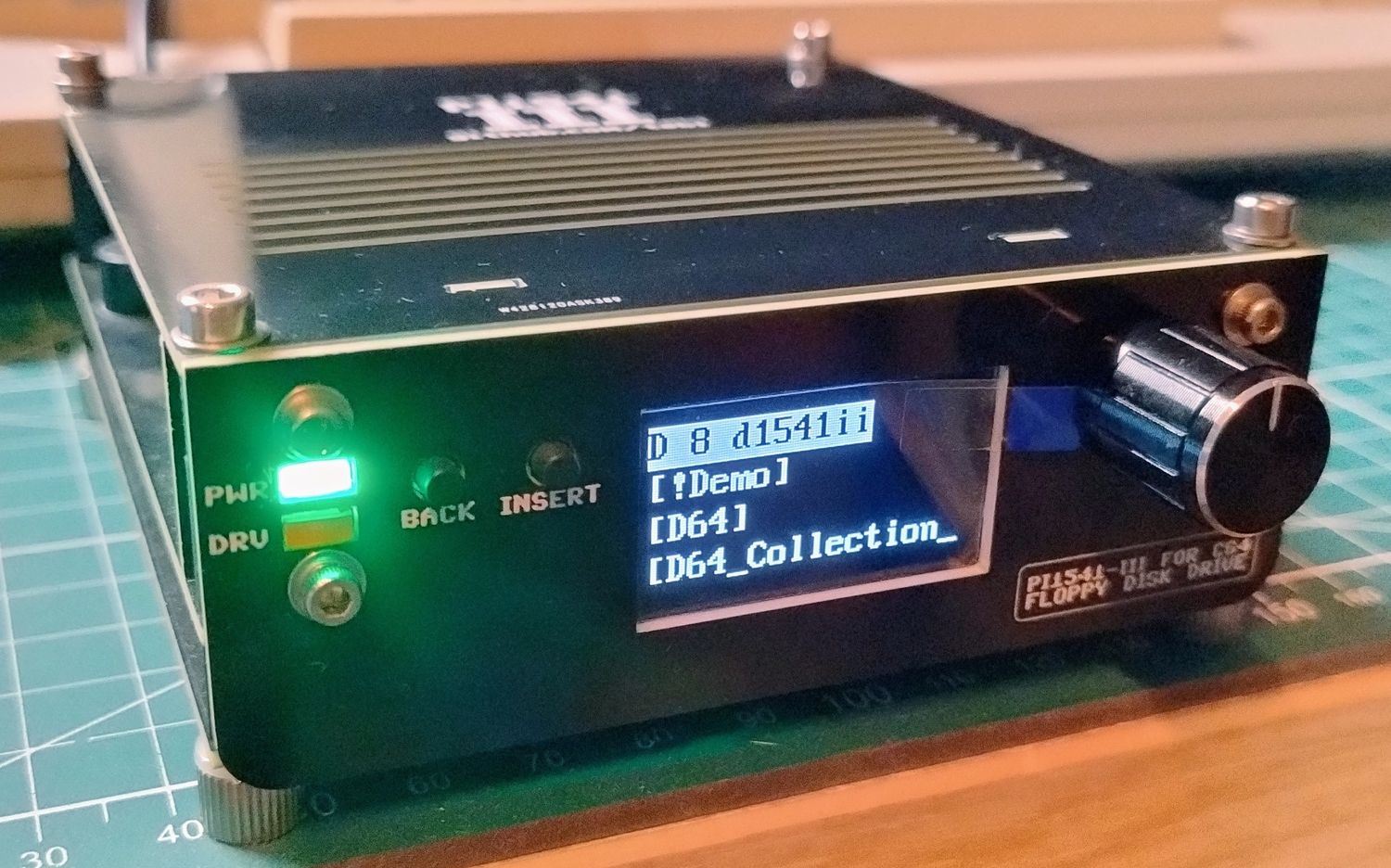

  Version III offers a 1.3" OLED display and rotary encoder for navigation – browse folders like on a smartphone instead of fumbling with a joystick.
• Media support:
  You can place hundreds of D64 files on the SD card (up to 32GB+), browse them using the Pi keyboard/screen or C64 commands (LOAD "",8", LOAD"",8,1). Saving is possible, but remember: retro is retro – always make a backup before your cat sits on the card.
• Power and assembly:
  Powered by a 5V power supply included. Compact housing ensures ease of use.

Based on the project:

https://github.com/tebl/C64-Pi1541-III

Youtube:

Instructional video
