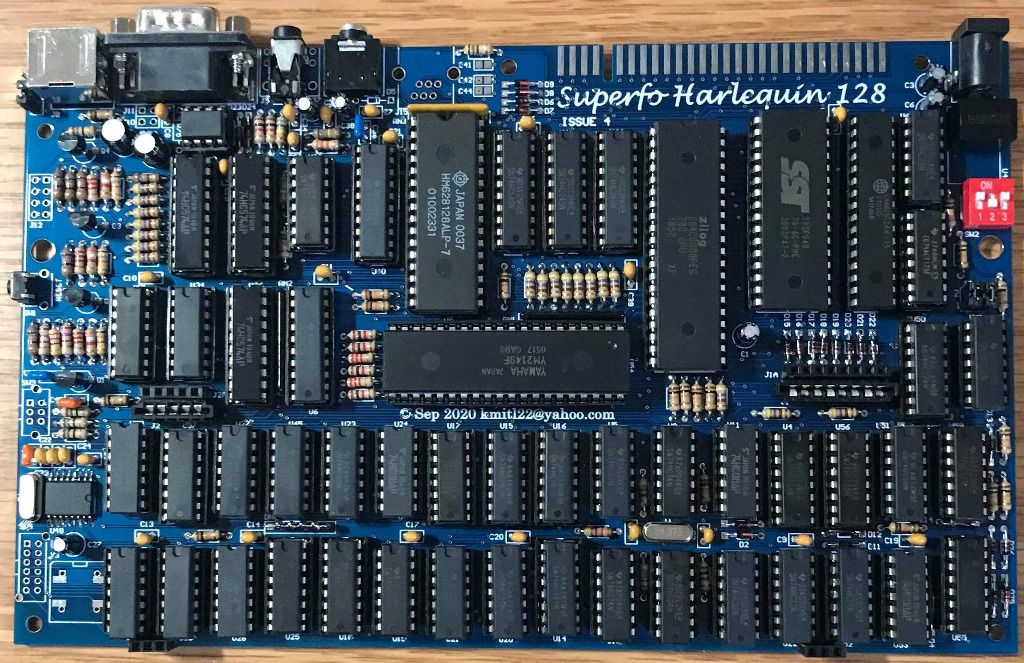

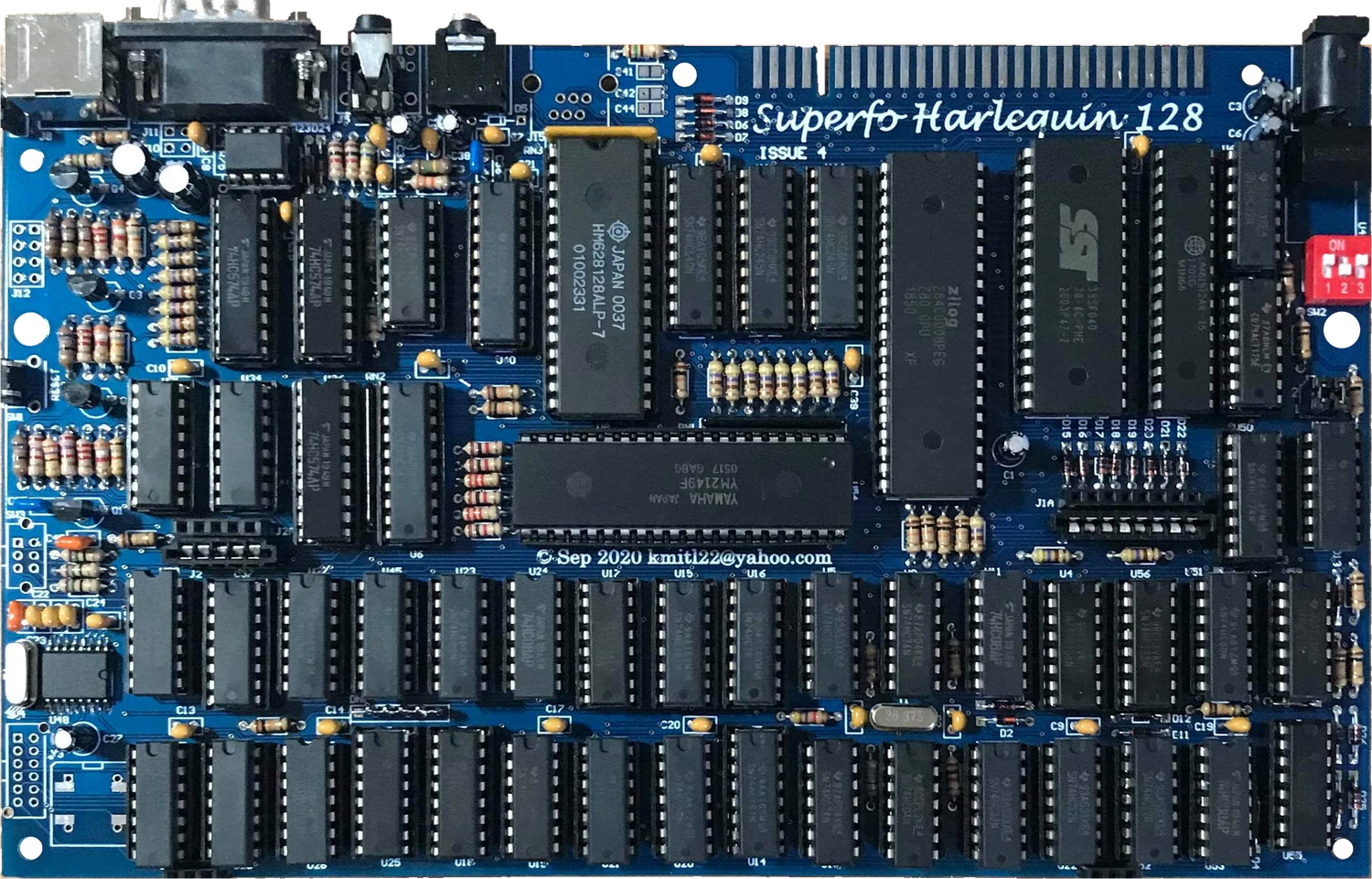

Complete DIY Kit Harlequin 128 v.4B

The complete DIY kit includes:

• Harlequin 128 v.4B PCB
• Full set of integrated circuits for the Harlequin 128 rev. 4B motherboard
• Z80 and AY-3-8910/Yamaha YM-2149 chips are used components due to discontinued production; all these chips are tested in testers operating at the frequencies used in the Harlequin 128
• Set of sockets (standard or precision – your choice, no price difference)
• RECOM/TRACO R-78e5.0-1.0 converter
• All passive components, diodes, transistors, DIP switches, and crystals (except those marked as optional – these are not included)
• All connectors
• Assembly instructions and PCB description
• Necessary assembly tips and guidelines for the most common problems during startup, according to the BOM list provided in the project link

Additional information:

• The kit is intended for individuals with basic knowledge of electronics and proper assembly techniques.
• All integrated circuits are new; the Z80 processor and AY-3-8910/Yamaha YM-2149 are additionally tested before shipping.

Project:

https://github.com/DonSuperfo/Superfo-Harlequin-128
