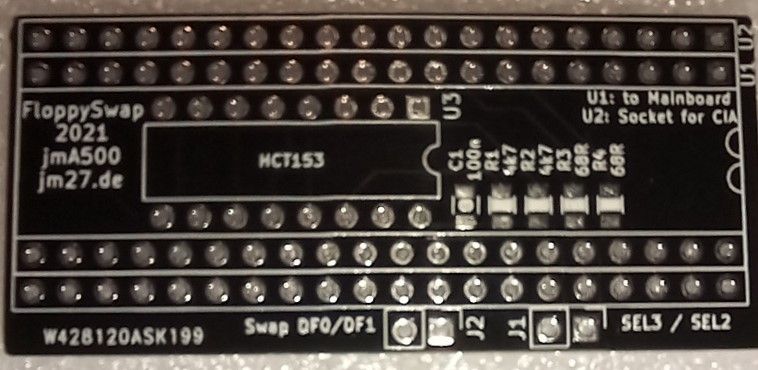

Amiga Floppy Drive Selector PCB

This module allows you to switch floppy drives using a 74HCT153 multiplexer instead of a complex mechanical switch.

Main advantages:

• Higher reliability compared to purely mechanical solutions.
• Lower cost than a mechanical switch.
• Key-Tap function enabling disk swapping via the keyboard.

An additional benefit is the combination of floppy drive switching with the Key-Tap function, significantly enhancing user convenience.

Design:

• https://github.com/jmA500/amiga-goodies
• https://www.jm27.de/amiga-floppy-swapper/
