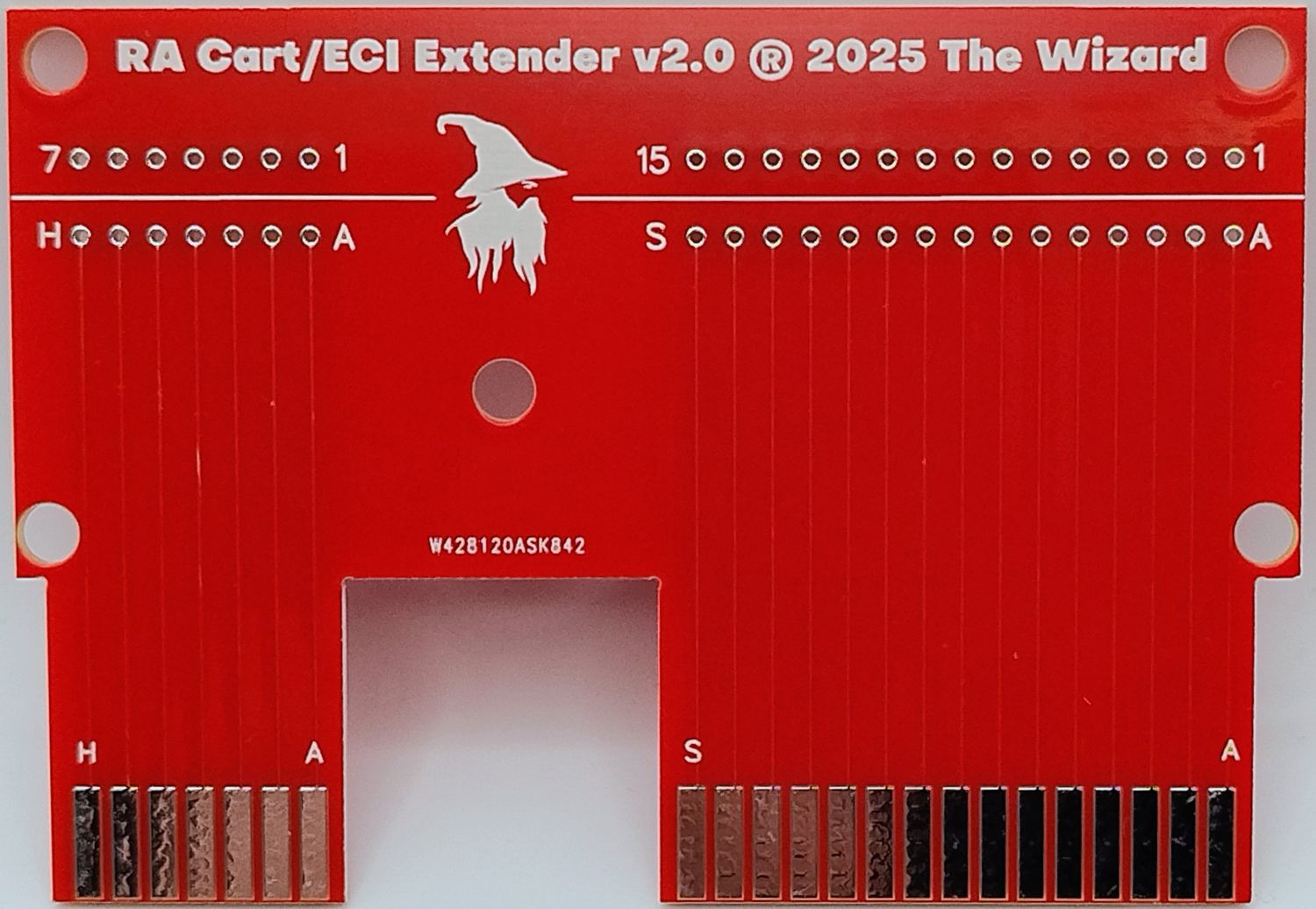

Atari XE FULL RA Cart / ECI Extender v2.0 PCB

This is an extender (extension adapter) for the ECI (Enhanced Cartridge Interface) port and cartridge in Atari 8-bit computers from the XE series (e.g., 65XE, 130XE, 800XE). It allows convenient connection of cartridges and extensions to the ECI + cartridge port in a RA (right-angle) orientation, facilitating access.

Project Description:

• Purpose:
  Facilitates simultaneous connection of multiple extensions to the ECI and cartridge port without risking damage to the slots. Fully compatible with ECI and cartridge in right-angle orientation.
• Version:
  v2.0 (improved compared to v1.0).
• BOM (Bill of Materials):
  Mainly edge connectors:
  • 7x2P 2.54mm
  • 15x2pin, 2.54mm, straight and easy to assemble

Project:
https://www.pcbway.com/project/shareproject/Atari_XE_FULL_RA_Cart_ECI_Extender_v2_0_6b004d3e.html?referrer=grok.com
