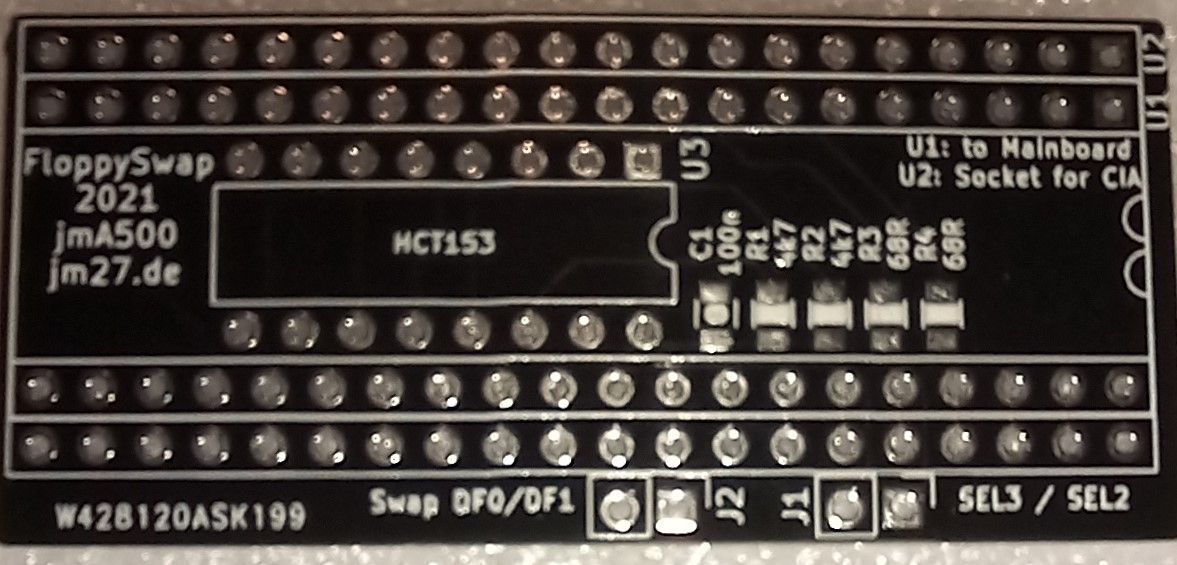

Amiga Floppy Drive Selector PCB

This is a floppy drive selector module that uses a 74HCT153 multiplexer instead of a complicated mechanical switch.

Why choose this module?

• Greater reliability: The solution with a multiplexer is more reliable than a purely mechanical approach.
• Lower cost: It is also a cheaper alternative compared to mechanical solutions.
• Additional functionality: The module combines the floppy drive switching function with the Key-Tap function, allowing you to use the keyboard to switch drives.

Project:

• https://github.com/jmA500/amiga-goodies
• https://www.jm27.de/amiga-floppy-swapper/
